Pneumatic Plunger Pump Type Anchor Cable Releaser





The anchor cable puller is a special anchor puller used for anchor cable puller in coal mines. It is mainly used for stress release and anchor recovery of coal mine tunnel roof. It is characterized by large anchor withdrawal force, reliable operation, good sealing performance, long service life, simple operation and convenient maintenance. The product has the advantages of high efficiency, compact structure, small size, light weight, stable operation and small pressure fluctuation. The anchor cable puller is a special tool for disassembling and recovering anchors, anchor cable trays, anchor nets, steel belts and timely top release. The machine is light in weight, has large anchor withdrawal force, and the anchor cable support roof in the return air zone can be quickly top released. The anchor and anchor cable tray can be reused after recovery and testing, thereby reducing the amount of materials and saving support costs. The air intake area, old pond, goaf area, and return air area follow the advancement of mining, and the roof collapses quickly, which minimizes the storage space of gas and coal dust and eliminates the hidden dangers of gas and coal dust accumulation.

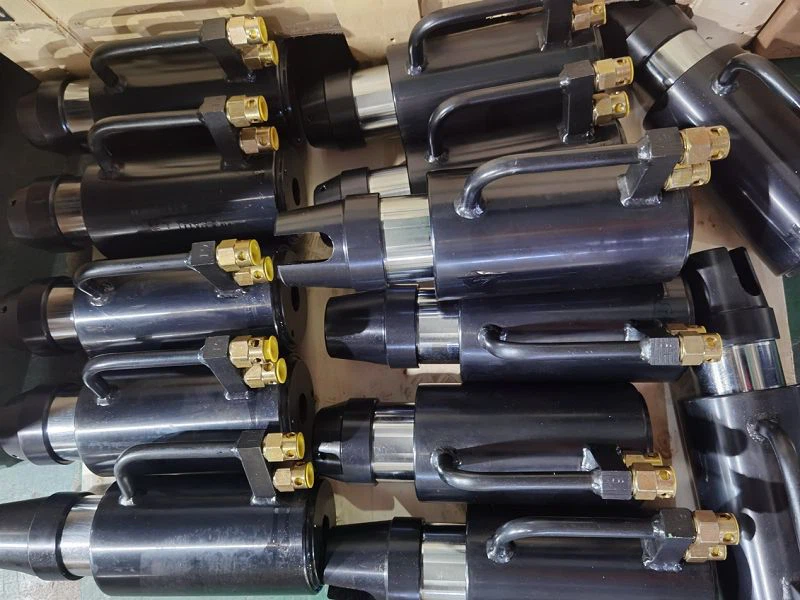

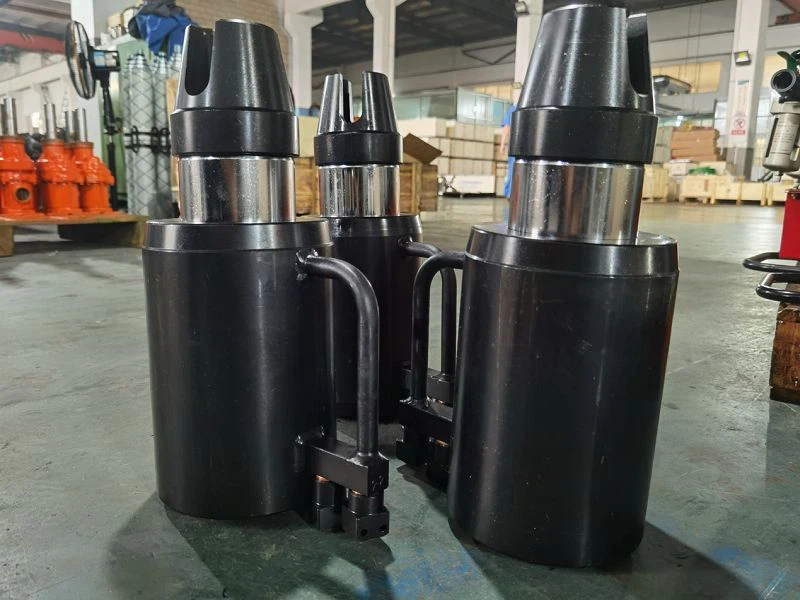

The mining anchor cable unanchor device is powered by a pneumatic oil pump, which is transmitted through pipelines and the jack is used as an actuator to unanchor the anchor cable. The pneumatic oil pump uses compressed air as the power, controls the vane motor through the intake valve, and drives the two-stage oil pump (the first pump is a cycloidal rotor pump and the second pump is a plunger pump) to work. The high-pressure power is output through the reversing valve to enter the actuator unanchor jack. The high-pressure oil acts on the outer cylinder and the mandrel. The claw locks the anchor cable while the jack presses the anchor to realize the anchor cable unanchor operation.





• Hengshuo independently designs and develops pneumatic plunger hydraulic pump station
• Lighter and more convenient to carry
• Two-way oil delivery, dual oil circuit operation
• More reliable and durable
• Plug and play air source, more convenient to operate
• Safety certification for mining products
• The whole series uses top-level bearings
• Direct sales from the manufacturer, worry-free





Example:

TQ22-500/63 means: a mining anchor puller with a rated pull-out force of 500kN and a jack rated pressure of 63MPa.





Prestressed Anchor Cable Withdrawal Project In Coal Mine Tunnels





TQ22-700/63
Basic performance			Unit	Parameter value
Complete machine	Rated pressure		MPa	63
	Rated tension		kN	700
	Tension value full range accuracy deviation		-	±3%
	Applicable steel strand diameter		mm	21.8
Tension force measuring instrument	Type			Pointer type
	Model		-	-
	Range		kN	0～1050
	Accuracy level		-	1.6
Tension jack	Cylinder diameter		mm	135
	Stroke		mm	100
	Center bore		mm	25
	Machine weight		kg	31
	Dimensions		mm	Φ160(±5)×385(±10)
Hydraulic pump station	System rated working pressure		MPa	64
	Working air pressure		MPa	0.4	0.5	0.63
	Air consumption		m³/min	1.4	1.7	2.2
	Oil tank effective volume		L	7
	System rated flow		L/min	1.3
	Machine weight		kg	18
	Dimensions		mm	450×325×385 (±20)
	Noise	Sound power level	dB(A)	112
		Sound pressure level	dB(A)	95



TQ22-600/63
Basic performance			Unit	Parameter value
Complete machine	Rated pressure		MPa	63
	Rated tension		kN	600
	Tension value full range accuracy deviation		-	±3%
	Applicable steel strand diameter		mm	21.8
Tension force measuring instrument	Type		―	Pointer type
	Model		―	―
	Range		kN	0～900
	Accuracy level		―	1.6
Tension jack	Cylinder diameter		mm	125
	Stroke		mm	100
	Center bore		mm	25
	Machine weight		kg	29
	Dimensions		mm	Φ150(±5)×385(±10)
Hydraulic pump station	System rated working pressure		MPa	64
	Working air pressure		MPa	0.4	0.5	0.63
	Air consumption		m³/min	1.4	1.7	2.2
	Oil tank effective volume		L	7
	System rated flow		L/min	1.3
	Machine weight		kg	18
	Dimensions		mm	450×325×385 (±20)
	Noise	Sound power level	dB(A)	112
		Sound pressure level	dB(A)	95



TQ22-500/63
Basic performance			Unit	Parameter value
Complete machine	Rated pressure		MPa	63
	Rated tension		kN	500
	Tension value full range accuracy deviation		-	±3%
	Applicable steel strand diameter		mm	21.8
Tension force measuring instrument	Type		―	Pointer type
	Model		―	―
	Range		kN	0～900
	Accuracy level		―	1.6
Tension jack	Cylinder diameter		mm	115
	Stroke		mm	100
	Center bore		mm	25
	Machine weight		kg	25
	Dimensions		mm	Φ140(±5)×385(±10)
Hydraulic pump station	System rated working pressure		MPa	64
	Working air pressure		MPa	0.4	0.5	0.63
	Air consumption		m³/min	1.4	1.7	2.2
	Oil tank effective volume		L	7
	System rated flow		L/min	1.3
	Machine weight		kg	18
	Dimensions		mm	450×325×385 (±20)
	Noise	Sound power level	dB(A)	112
		Sound pressure level	dB(A)	95
